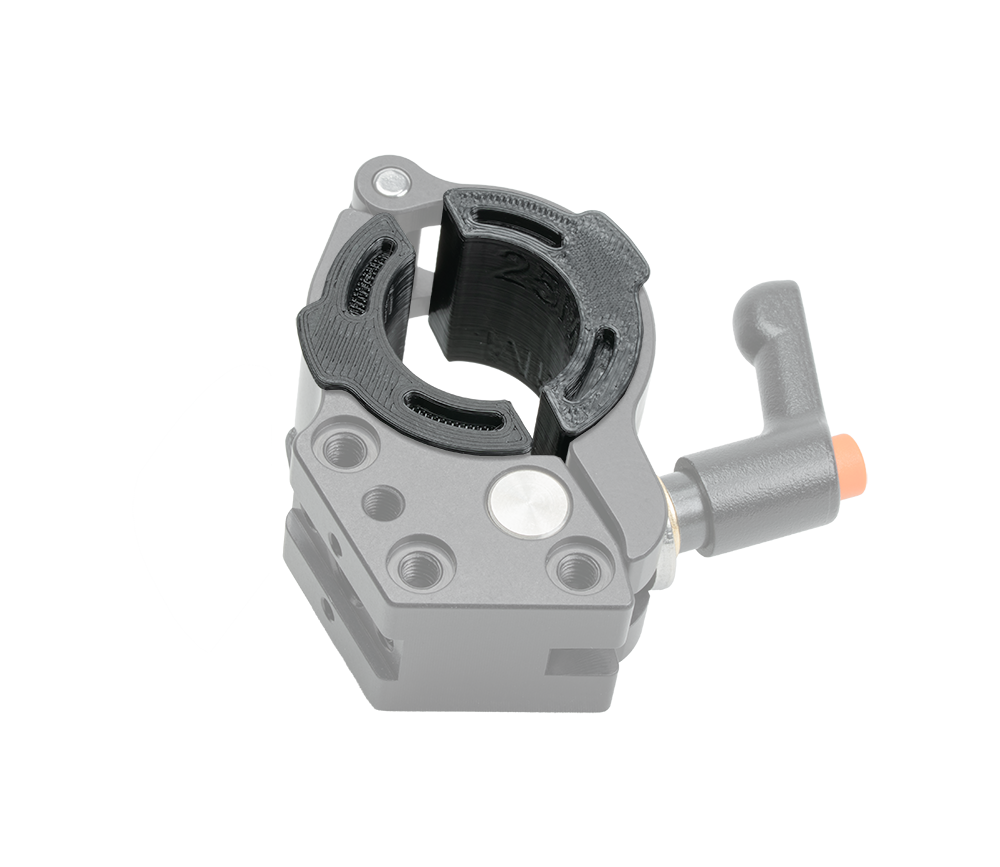

The Whaley Rail Flip Open Clamp Reducers are 3D printed, snap fit reducers that adapt the Flip Open Clamp to other industry standard OD tubing on C-stands, rolling stands and carts. Two identical reducer pieces are included in each kit to snap onto either side of the clamp (clamp body and clamp tab).

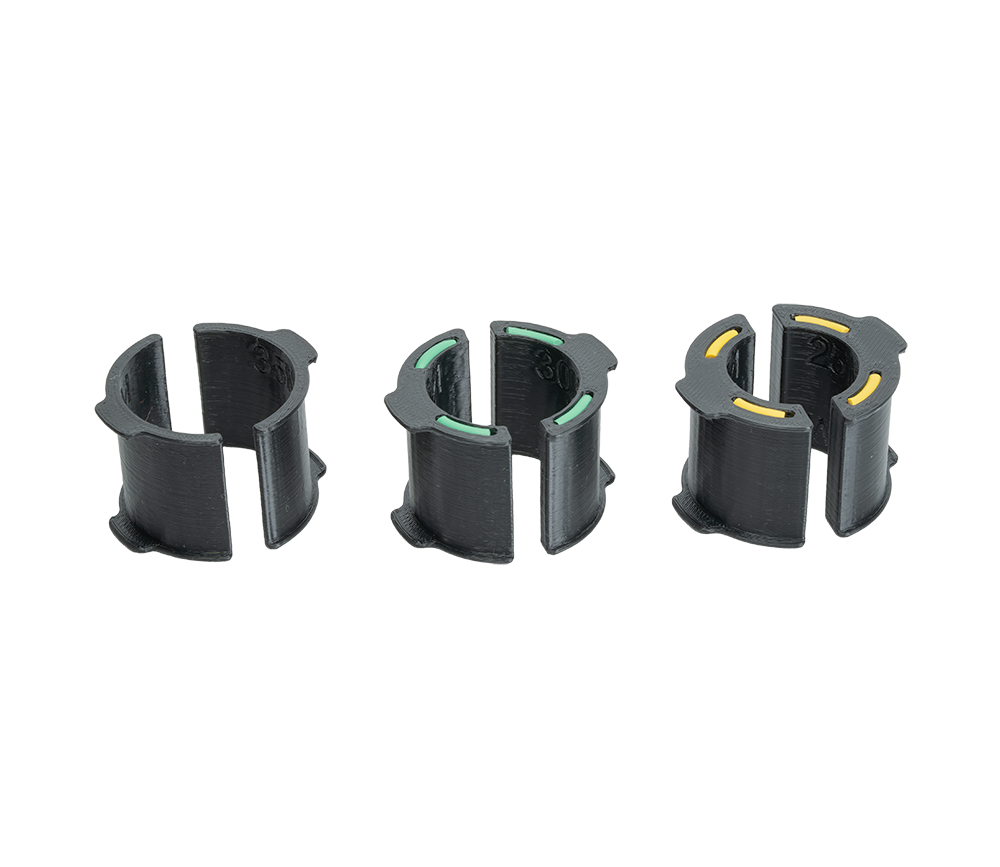

The reducers are available for imperial based diameters in 1.25″, 1″ and 0.75″, as well as metric based diameters in 35mm, 30mm and 25mm.

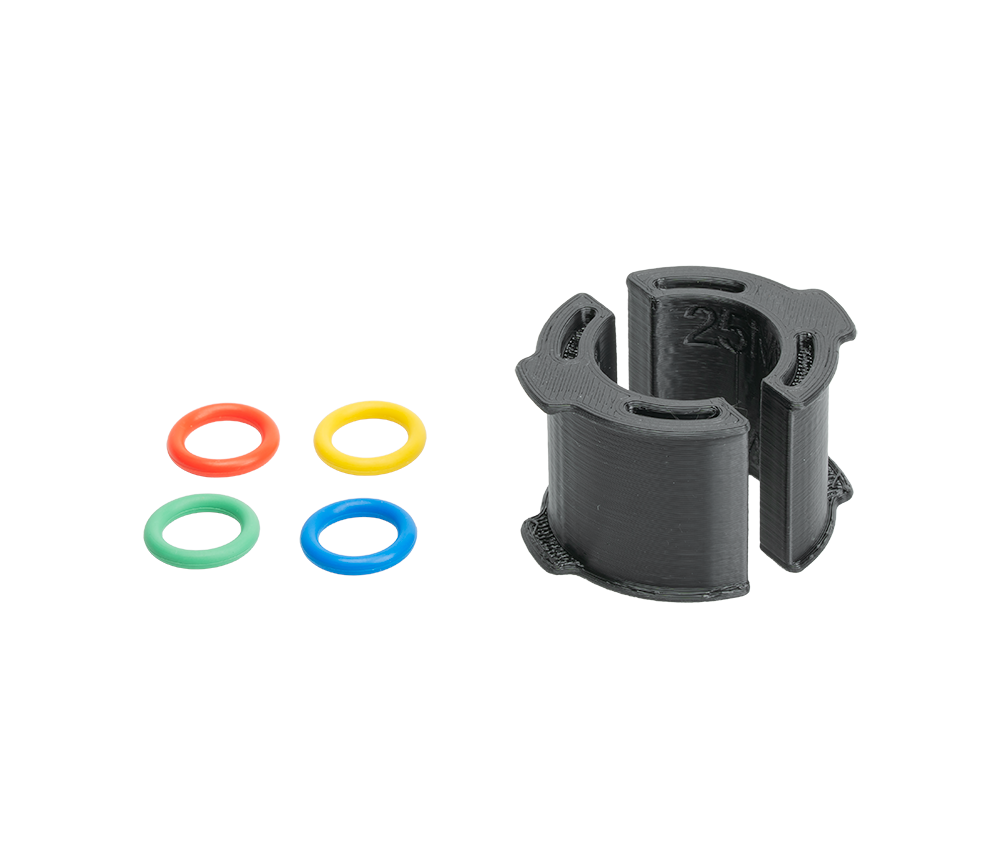

For the 1″, 0.75″, 30mm and 25mm reducer sizes, coloured O-rings (red, blue, green and yellow) are provided to colour code the reducers if desired. The O-ring can be cut into four pieces and pushed into the slots on the reducer.
Description
Industry Tubing OD Database
Matthews C-stands - 1.25" Bottom Stage, 1" Middle State, 0.75" Top Stage
Matthews Monitor Stand II - 1.5" Bottom Stage, 1.25" Top Stage
Avenger C-stands - 35mm Bottom Stage, 30mm Middle Stage, 25mm Top Stage
Backstage Magliner - 1.25" Round Tube
