Add additional Deck Cheese Plates to your Whaley Rail II system. This accessory is ideal for users with two or more carts to efficiently switch between various cart sizes depending on the project scope by having Deck Cheese Plates mounted. Save money by not purchasing a full secondary Whaley Rail system for your secondary cart and expand your existing system. Contact Upgrade Innovations for further information.
Description

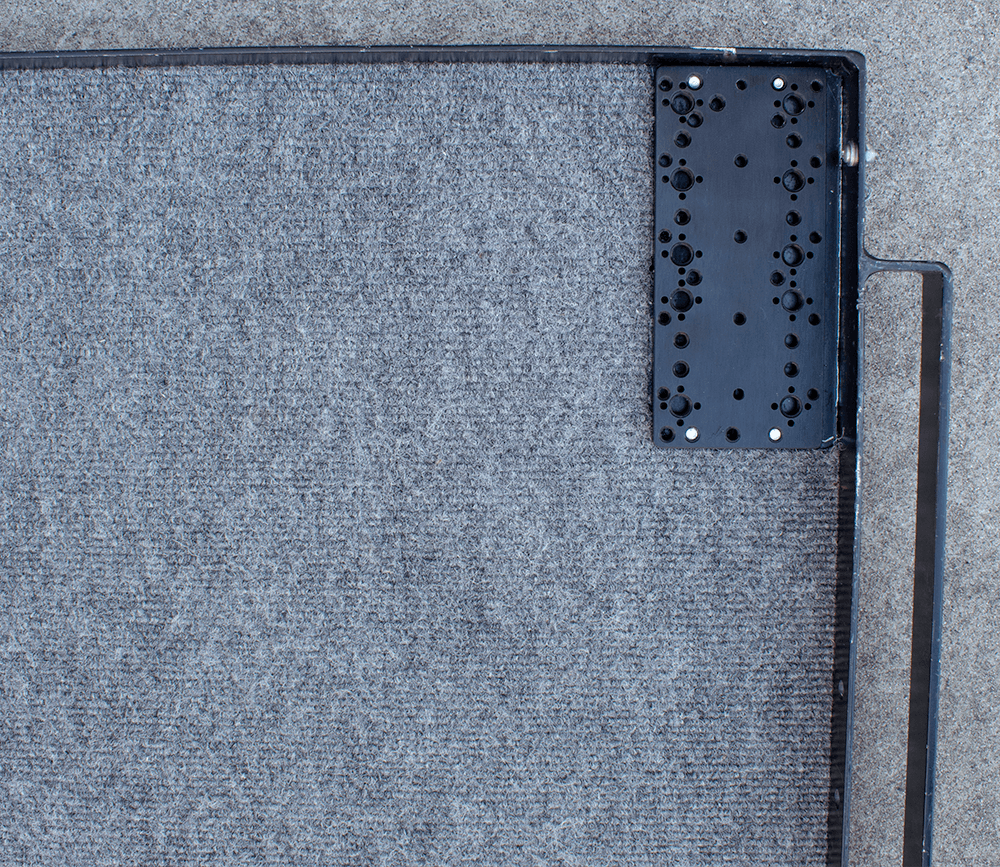

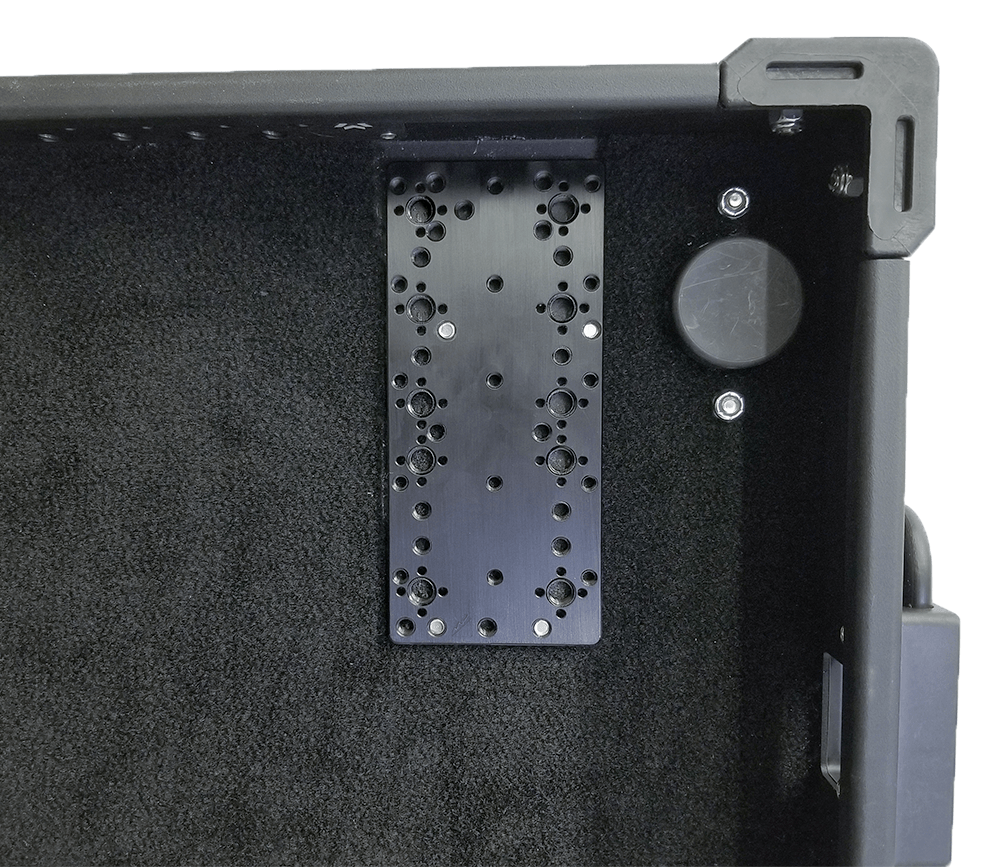

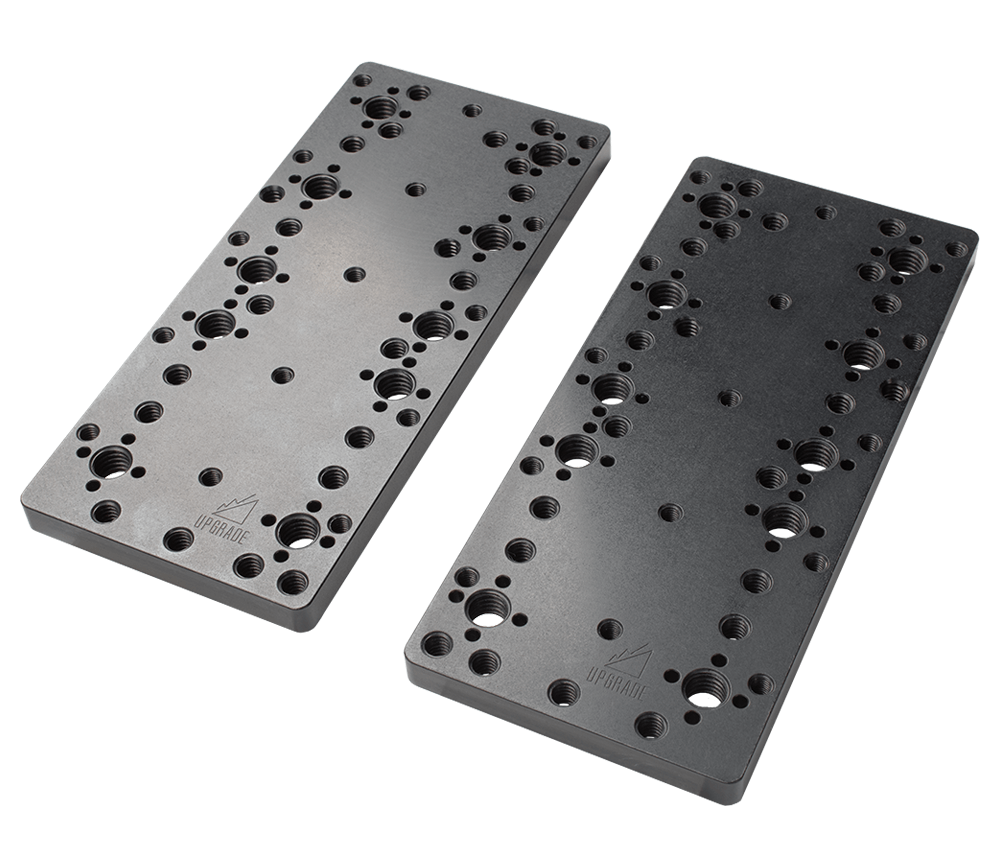

Deck Cheese Plate is provided with necessary mounting screws based on cart brand and model noted.

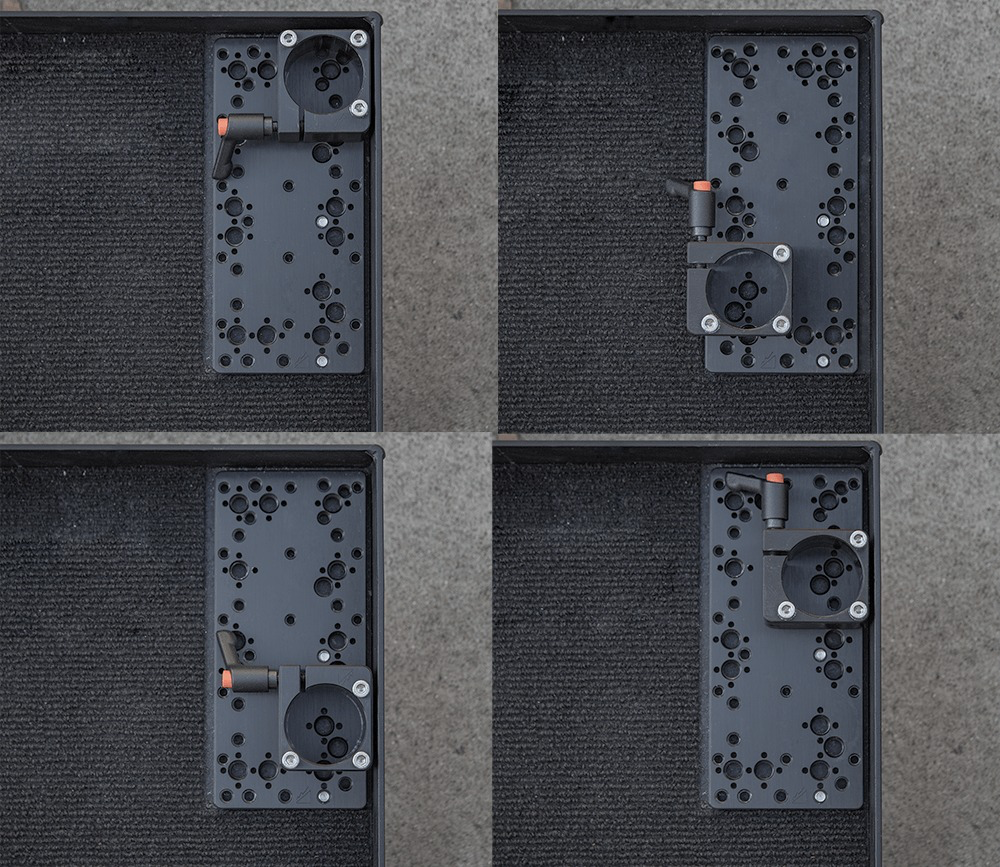

Mount the Deck Post Clamp in up to six positions on the Deck Cheese Plate to build the mounting frame.
Inovativ Echo

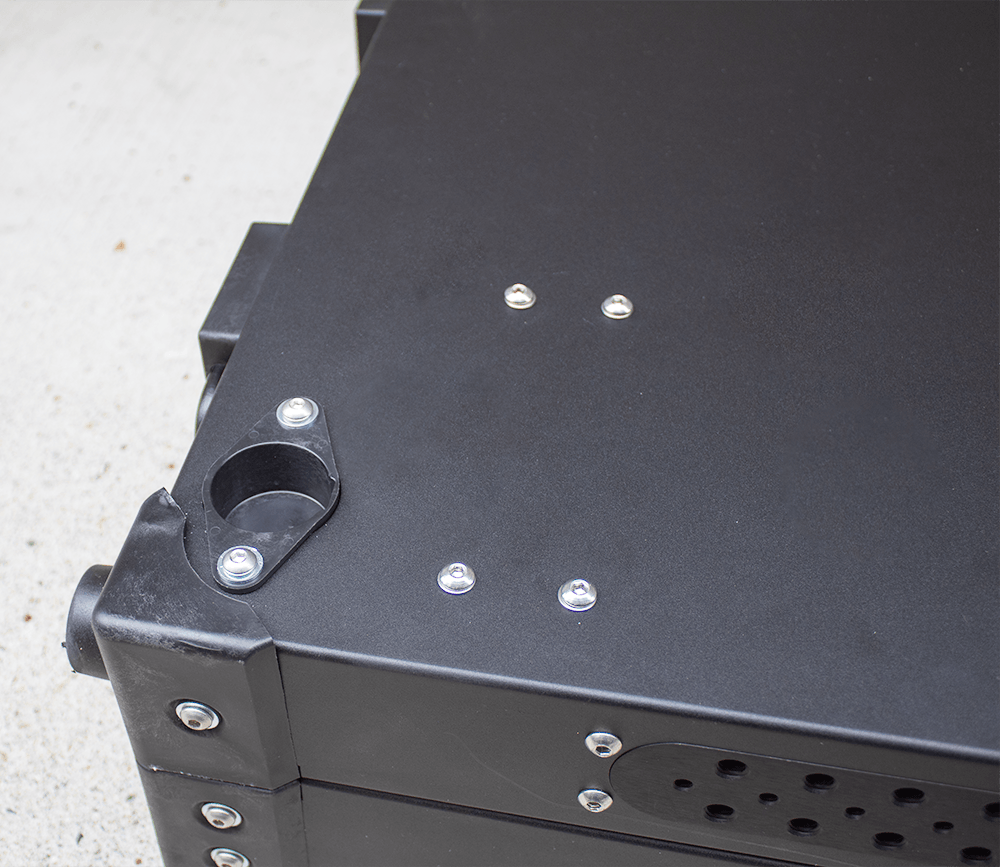

Makes use of existing holes through the deck and incorporates the machined post receivers.
Inovativ Scout & Voyager

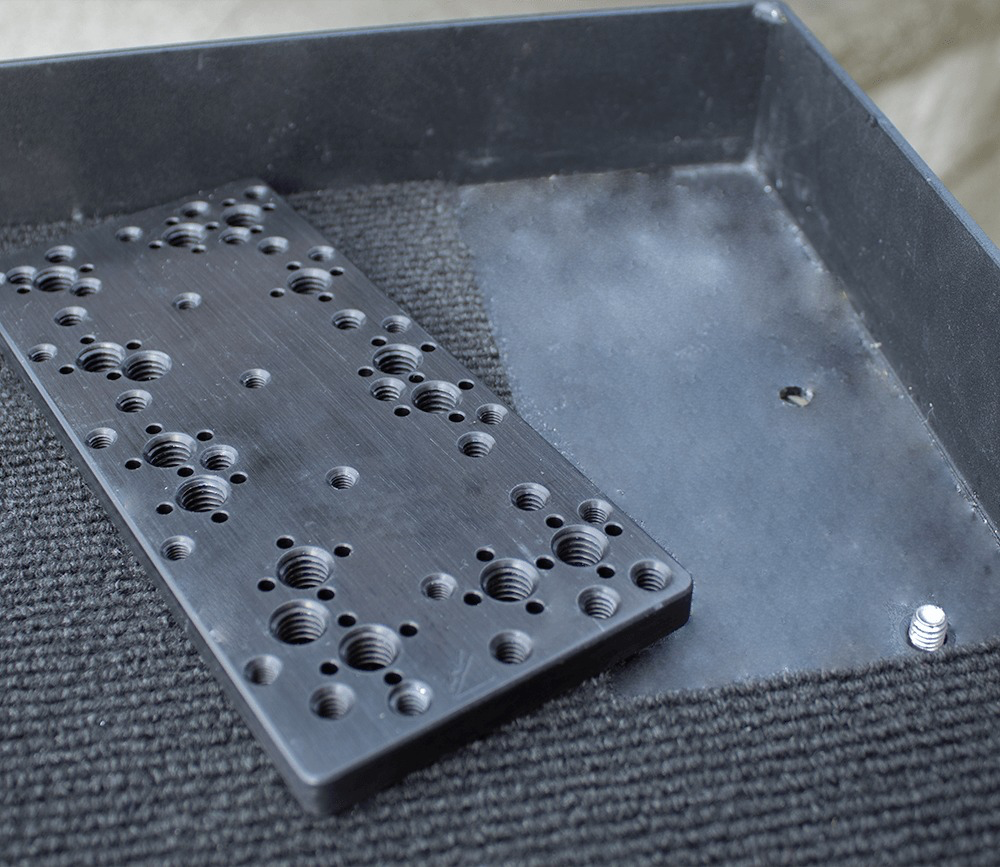

Through holes need to be transferred and drilled through top deck to mount cheese plate with 1/4-20 screws.
Inovativ Voyager X-Top
Makes use of two existing holes through the deck and requires two through holes to be transferred and drilled through top deck to mount cheese plate with 1/4-20 screws.
Backstage Magliner
Through holes need to be transferred and drilled through top deck to mount cheese plate with 1/4-20 screws.
Inovativ Apollo
No cheese plates are required! Additional vertical posts are required to adapt from 1.5" to the 1.25" Apollo corner clamp. Contact Upgrade innovations for details.
YaegarPro
No cheese plates are required! Additional vertical posts are required to adapt from 1.5" to the 1" YaegarPro corner clamp. Contact Upgrade innovations for details.
Adicam
Through holes need to be transferred and drilled through top deck to mount cheese plate with 1/4-20 screws.
Have another cart that is not listed? Contact Upgrade Innovations for details.
The Whaley Rail II mounting frame is built out of versatile components that can be adapted to different cart sizes. Upgrade to a new build and make use of your existing mounting frame system! Depending on the cart brand and model, the length of the cross rail will differ.
Contact us or Upgrade Innovations to discuss cross rail lengths to adapt to various cart sizes.
