- Compatible with Bolt 4K and Bolt 6
- Provides a robust and uninterrupted directional signal
- 4.9-7.3GHz
- Range of up to 5,000ft
Product Overview

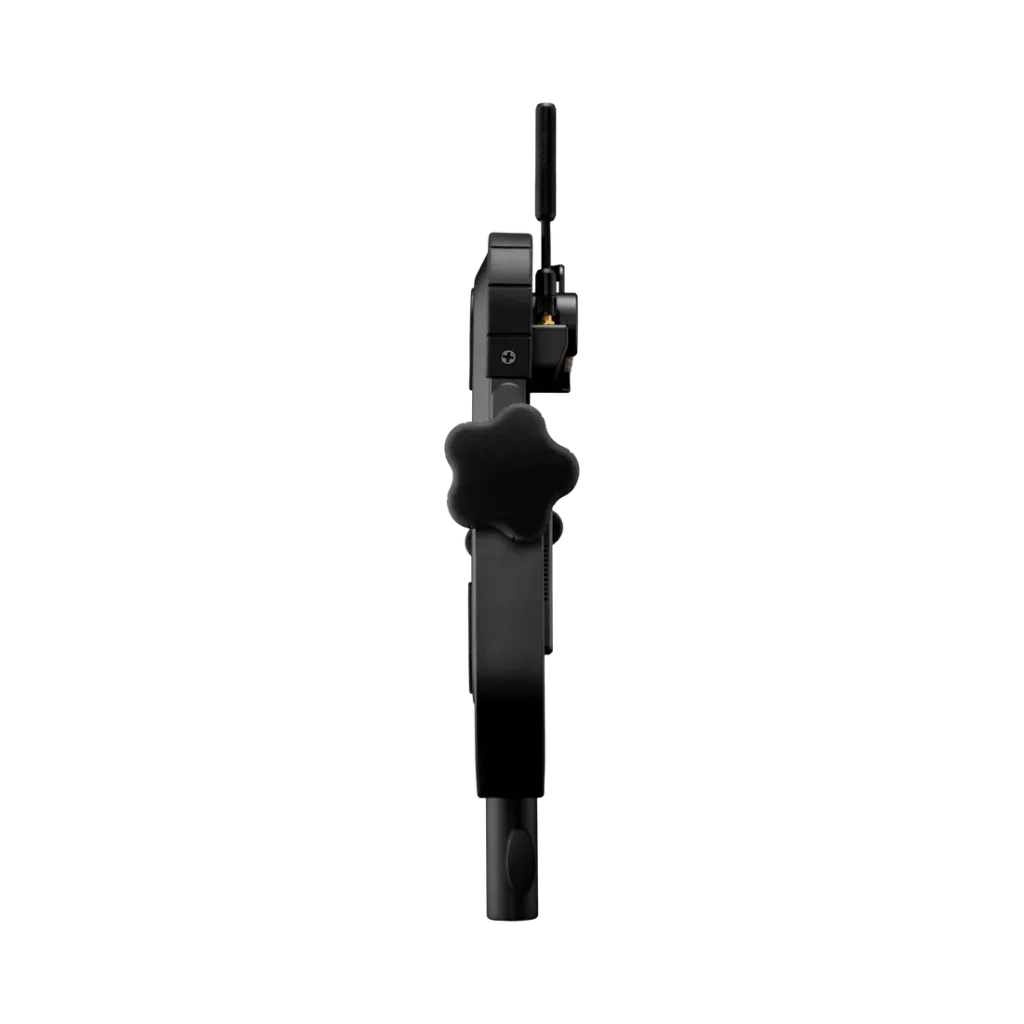

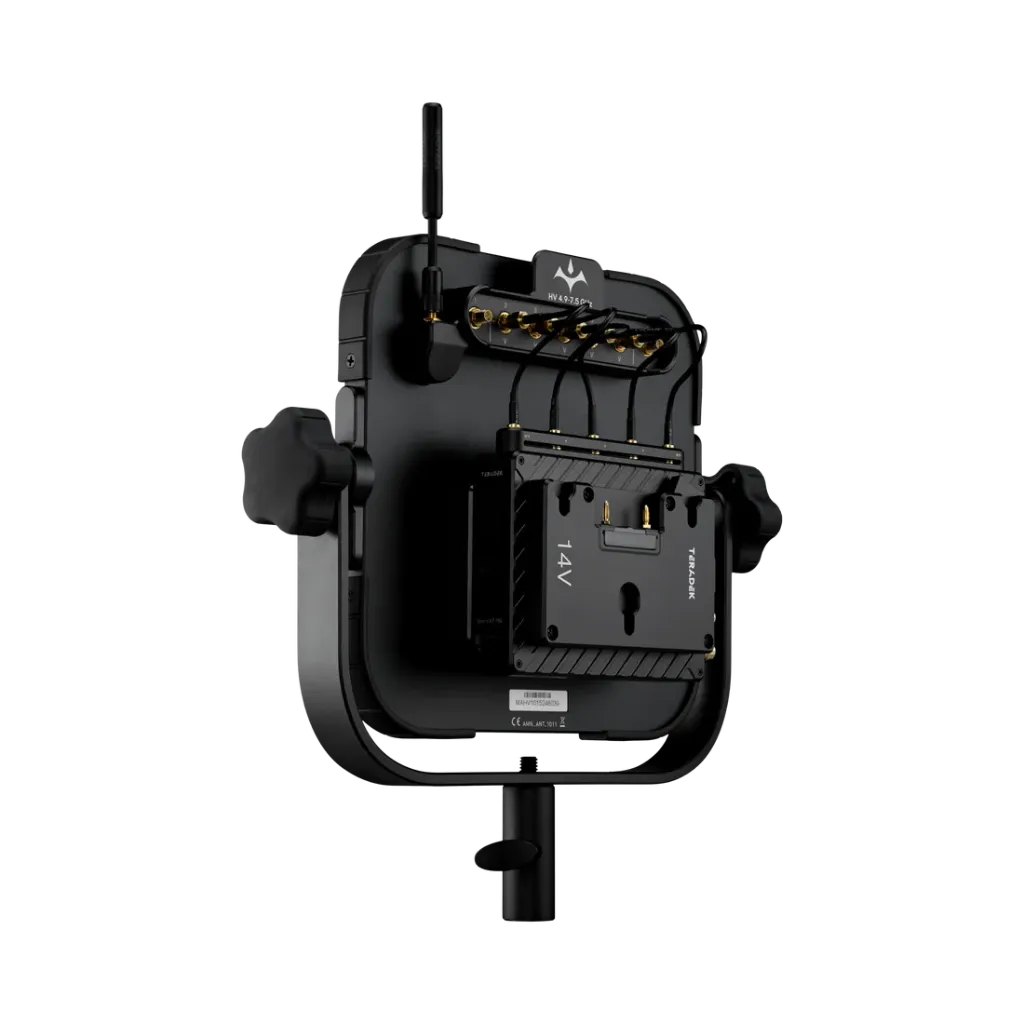

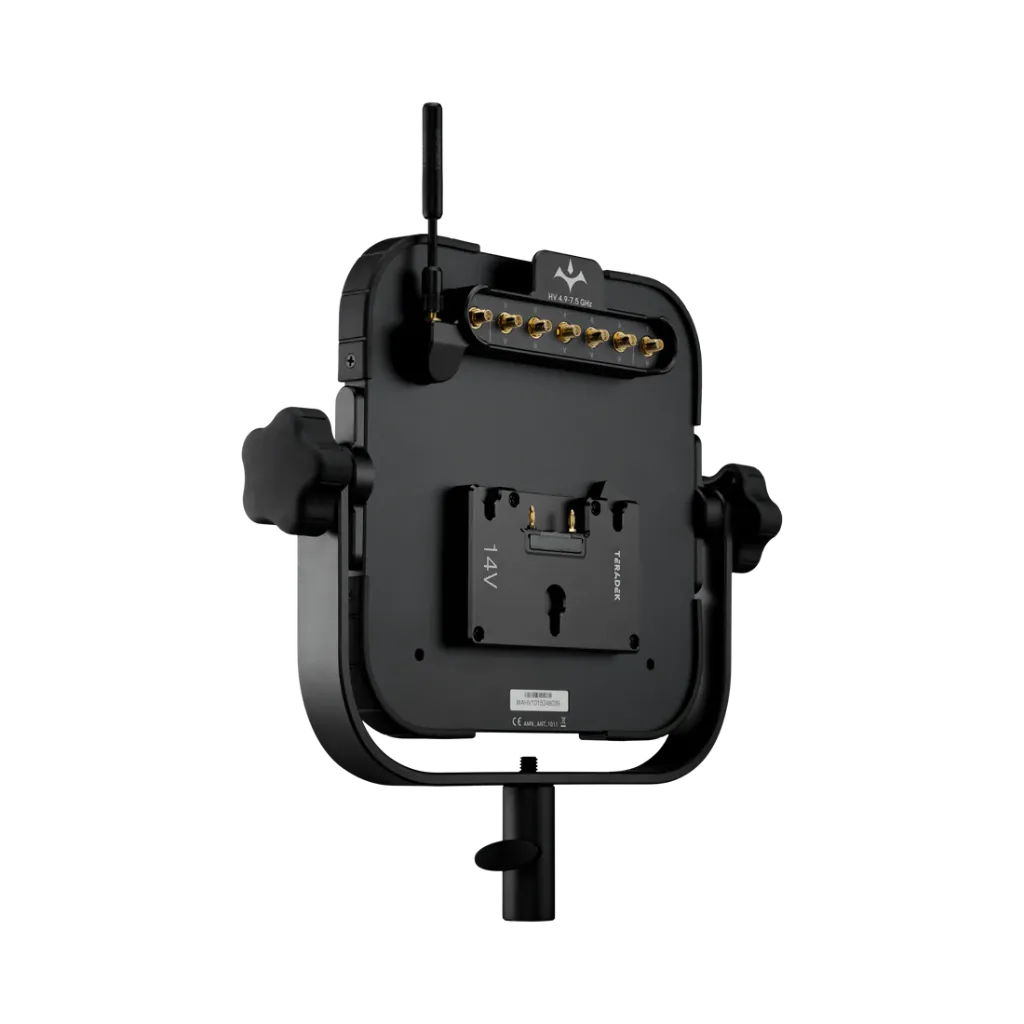

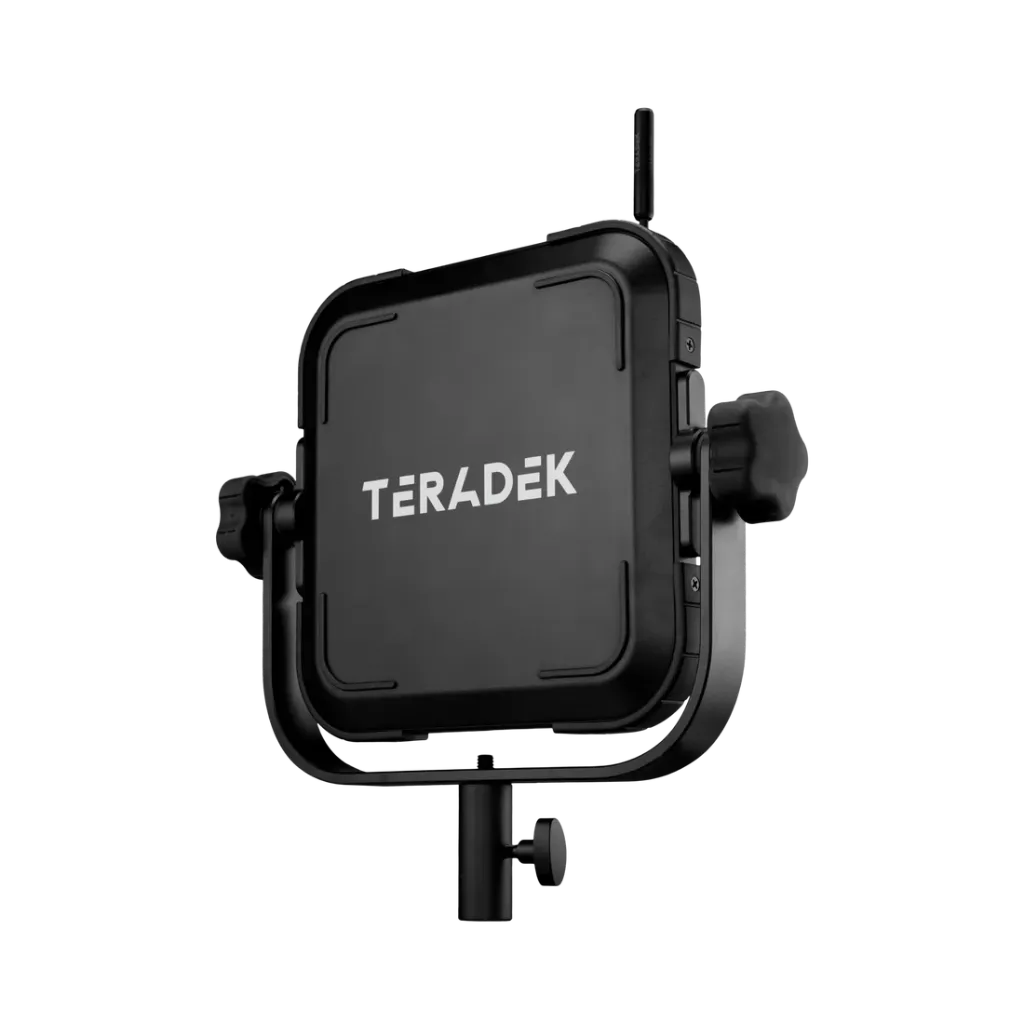

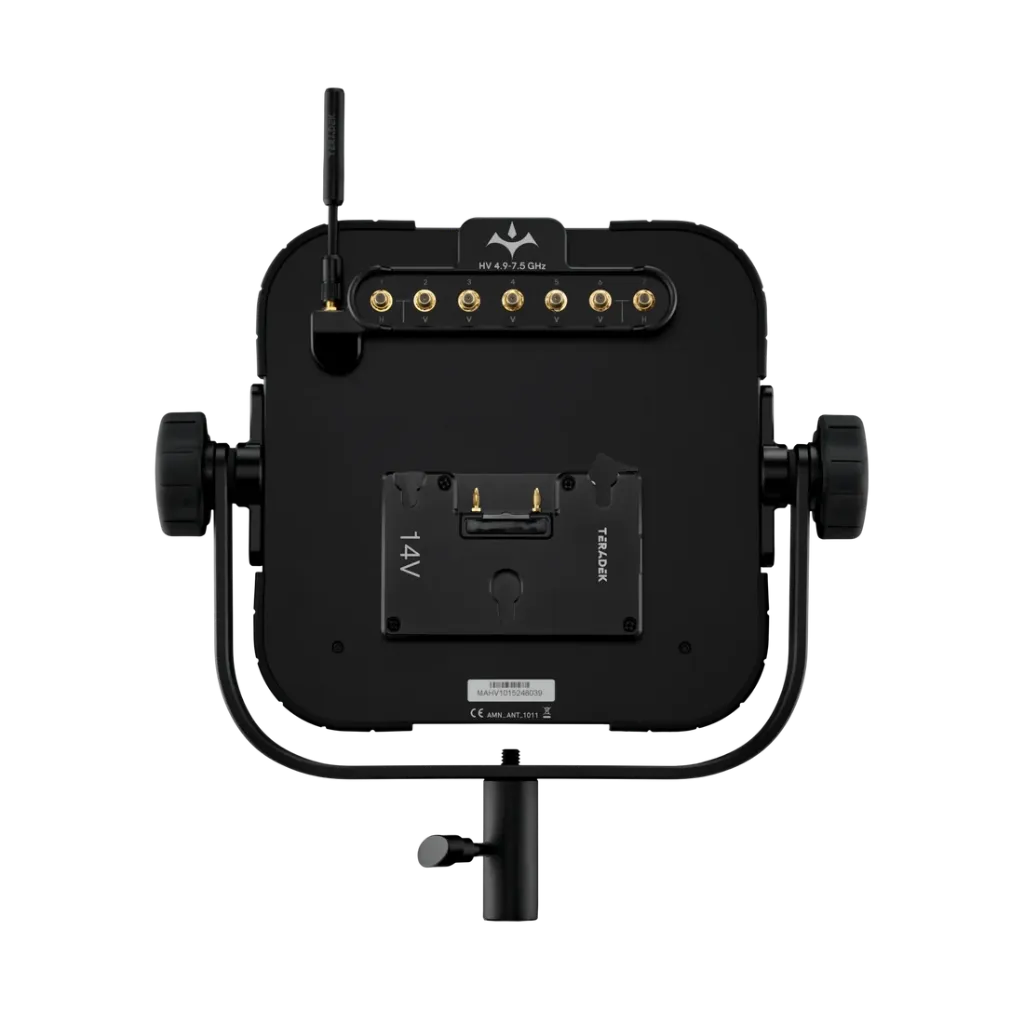

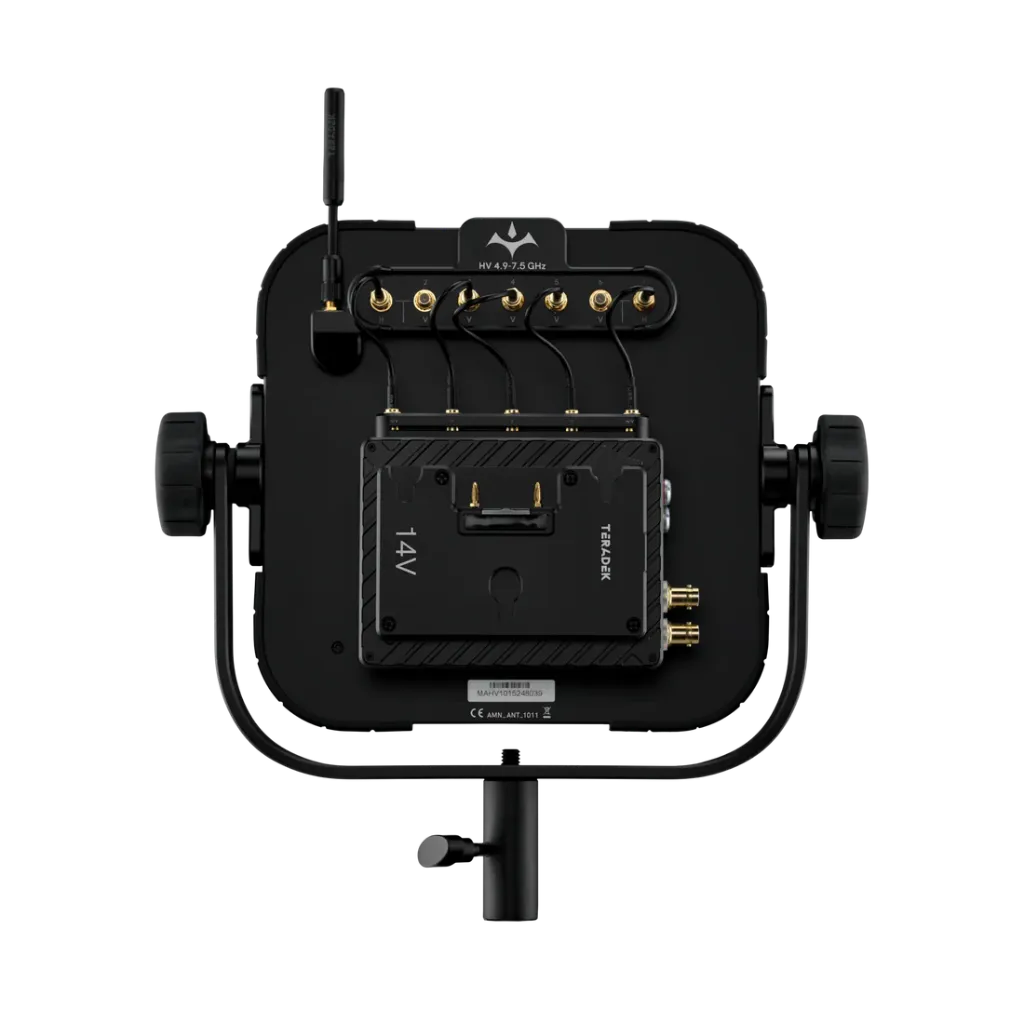

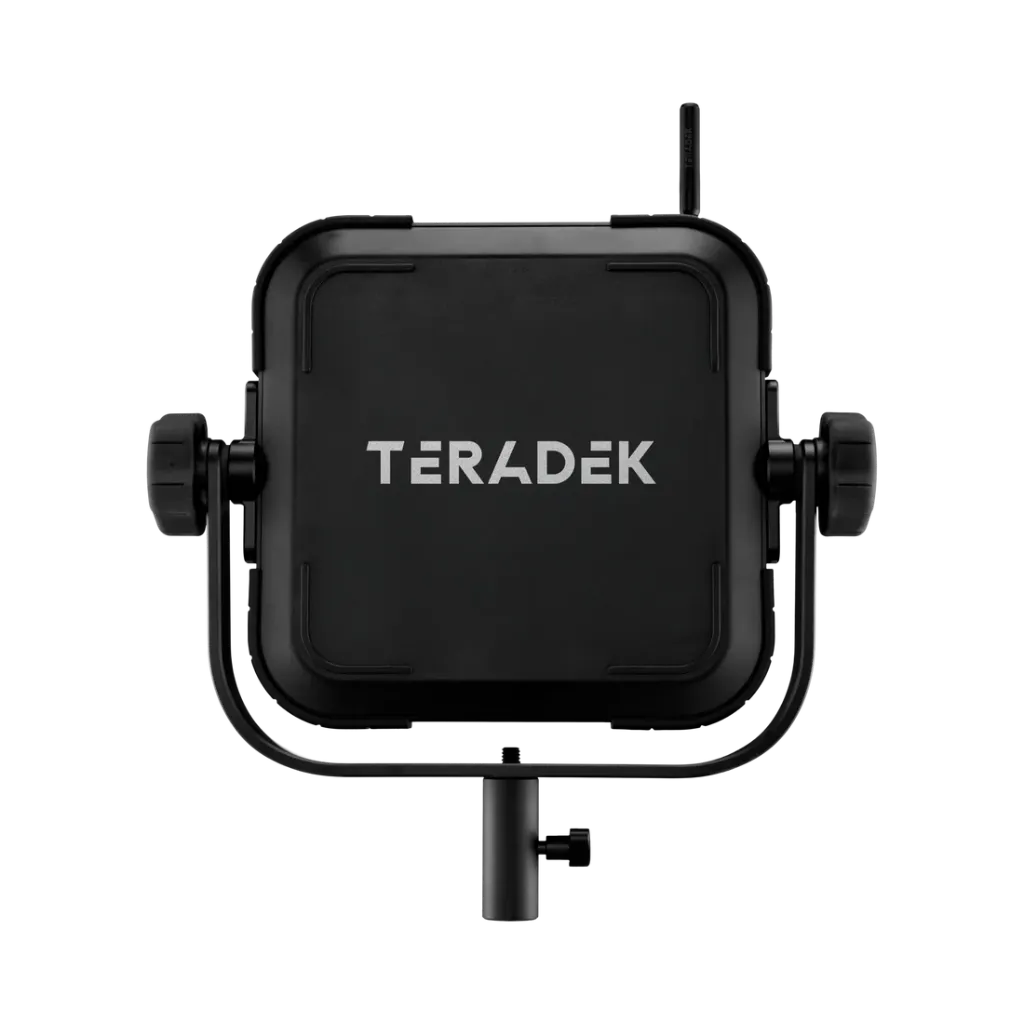

The Antenna Array for Bolt 6 / Bolt 4K 4.9-7.3GHz interfaces with Bolt 6 / Bolt 4K to provide an extremely robust and uninterrupted directional signal at a range of up to 5,000ft. The Array offers a more resilient wireless transmission, especially in challenging RF conditions, by focusing the signal and reducing interference. Featuring a dedicated external omnidirectional antenna for increased reception when the signal is outside the directional cone of the panel array. As a result, you may achieve a boost in the reception range based on the maximum range of the connected Bolt4K.
Features
Focuses the wireless signal and reduces interference to achieve a boost in reception range (but not above max range of Bolt set)
Composed of 3x16 dBi, 2x14 dBi, and 1x2dBi antennas using 5.1-7.3 GHz MIMO
Small, Lightweight and made from UV-protected plastic with aluminum alloy
In the Box
- 1 x Antenna Array for Bolt Gold Mount
- 5 x 10cm Antenna Cable (RP-SMA Female to RP-SMA Female)
- 1 x Flexible V-Antenna (2dBi WiFi 2.4/5.8 GHz)
