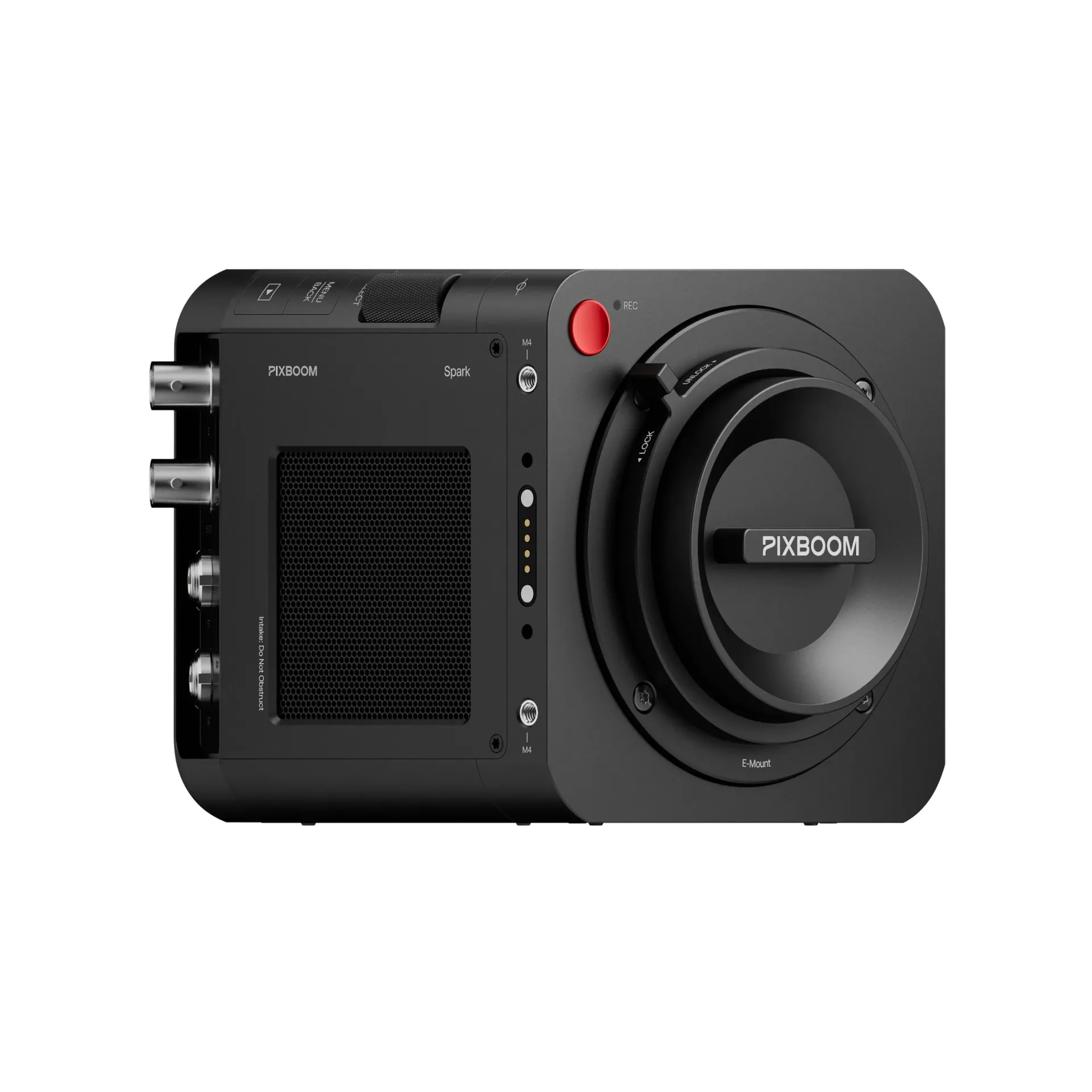

Spark Kit including:
• 1 × Pixboom Spark Camera
• 1 × Pixboom Pro Card

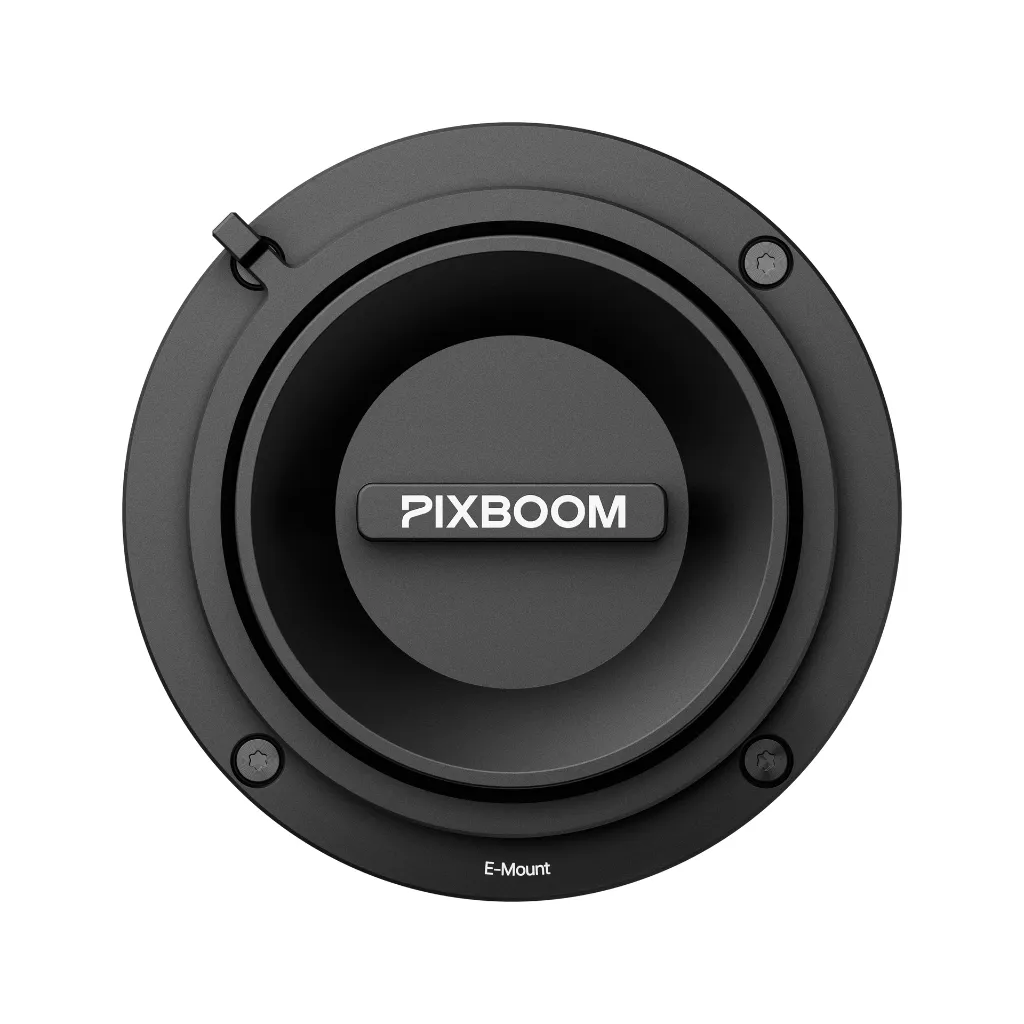

• 1 × Lens Mount Adapter (E mount)
✓ 2-Year Warranty
Technical Highlights
High frame rates
• 1000 fps at 4K resolution
• 1800 fps at 2K resolution
• Sensor: Super 35mm BSI (backside illuminated)
• Shutter: Global shutter, free of motion artifacts
• Display: 3.5 inch high brightness touchscreen
• Recording format: Pixboom lossless RAW (pxbl), future ProRes support
• Pre recording buffer: Up to 2000 frames
• Remote operation: via Wi Fi and mobile app
Storage
• Exchangeable internal SSD
• USB C direct connection, no external reader needed
• Up to 2.4 terabytes capacity
Monitoring outputs
• 12G SDI up to 4K 60p
• HDMI 2.0
Anamorphic support
• Custom resolutions
• De squeeze preview option
Build quality
• Machined aluminum housing
• Active cooling system
Technical Specifications
| Sensor |
|---|
| Sensor type | 14.2MP Super 35mm Global Shutter CMOS |
| Sensor size | 4608 × 3072 | 25.34 × 16.90 mm (30.46 mm diagonal) |
| Dynamic range | 13 Stops |
| Lens Mount |
|---|
| Mount Type | Interchangeable locking mount (E/PL) |
| Electronic communication | Supported |
| Recording & Media |
|---|
| Max Data Rate | Up to 10 GB/s (Pixboom Pro Card) |
| Media Type | Removable Pixboom Pro Card |
| Media Export | USB-C, no card reader required |
| Export Speed | 20 Gbps (USB 3.2 Gen2x2) |
| Body & Power |
|---|
| Construction | Aluminum Alloy |
| Color | Silver / Black |
| Dimensions (H × W × L) | 108 × 110 × 130 mm |
| Weight | < 1.1 kg (without mount & card) |
| Power Input | 15–24 V via 5-Pin DC-IN / V-Lock |
| Connectivity & I/O |
|---|
| Video Outputs | 12G-SDI (4K), HDMI 2.0 (4K) |
| Remote Control | Wi-Fi (2.4 / 5 GHz), USB-C, 9-Pin EXT |
| Additional I/O | Genlock, LTC, GPIO (9-Pin EXT) |
| Software |
|---|
| Pixboom Control | Mobile control & live preview |
| Pixboom Cine | RAW processing software |
Resolutions and Frame Rates
| Recording Resolution | Width | Height | Max FPS | Sensor Width (mm) | Sensor Height (mm) |
|---|
| 4.6K 3:2 Open Gate | 4608 | 3072 | 670 | 25.34 | 16.90 |
| 4.6K 16:9 | 4608 | 2592 | 781 | 25.34 | 14.26 |
| 4.6K 2:1 | 4608 | 2304 | 887 | 25.34 | 12.67 |
| 4.6K 2.37:1 | 4608 | 1944 | 1025 | 25.34 | 10.69 |
| 4.6K 4:1 | 4608 | 1152 | 1724 | 25.34 | 6.34 |
| 4K 16:9 | 4096 | 2304 | 887 | 22.53 | 12.67 |
| 4K 2:1 | 4096 | 2048 | 994 | 22.53 | 11.26 |
| 4K 2.37:1 | 4096 | 1728 | 1171 | 22.53 | 9.50 |
| 4K 4:1 | 4096 | 1024 | 1926 | 22.53 | 5.63 |
| 2K 16:9 | 2048 | 1152 | 1724 | 11.26 | 6.34 |
| 2K 2.37:1 | 2048 | 864 | 2182 | 11.26 | 4.75 |
| 2K 4:1 | 2048 | 512 | 3625 | 11.26 | 2.82 |
