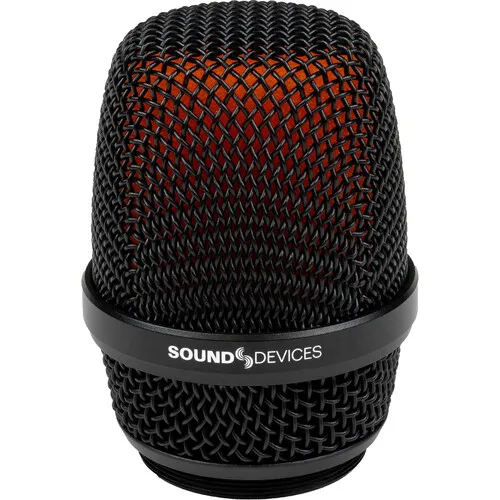

The CD1 Mic Capsule from Sound Devices is a high-performance modular capsule designed for the A20-HH handheld microphone/transmitter, offering outstanding consistency and reliability for professional vocal applications. As the world's only 100% calibrated dynamic mic, every CD1 is factory-tested to ensure identical sensitivity and frequency response across all units delivering uniform sound, session after session.
Engineered for superior vocal clarity, the CD1 features a cardioid polar pattern with a well-balanced 50 Hz to 15 kHz frequency response tailored specifically for voice reproduction. Its patented dual-engine design incorporating two voice coils and two diaphragms ensures consistent polar patterns across all frequencies, reduces handling noise, and maximizes dynamic range with a >140 dB SPL handling capability.
Despite its advanced acoustic engineering, the CD1 is built for the demands of touring and live performance. The capsule's rugged construction, integrated shock-mounting, and durable steel grille provide exceptional durability, ensuring flawless operation, even after repeated drops and handling.
Overview
- 100% factory-calibrated—every CD1 matches every other CD1 ever made
- Dual-diaphragm, dual-voice coil design for consistent polar patterns and minimal handling noise
- Cardioid polar pattern with a 50 Hz to 15 kHz frequency response, ideal for vocals
- High SPL handling of >140 dB, capturing loud sources with clarity
- Low output impedance of 600 ohms for compatibility with professional audio systems
- -54 dBV/Pa sensitivity ensures clear, detailed sound pickup
- Rugged steel grille and shock-mounted construction for superior durability in touring environments
