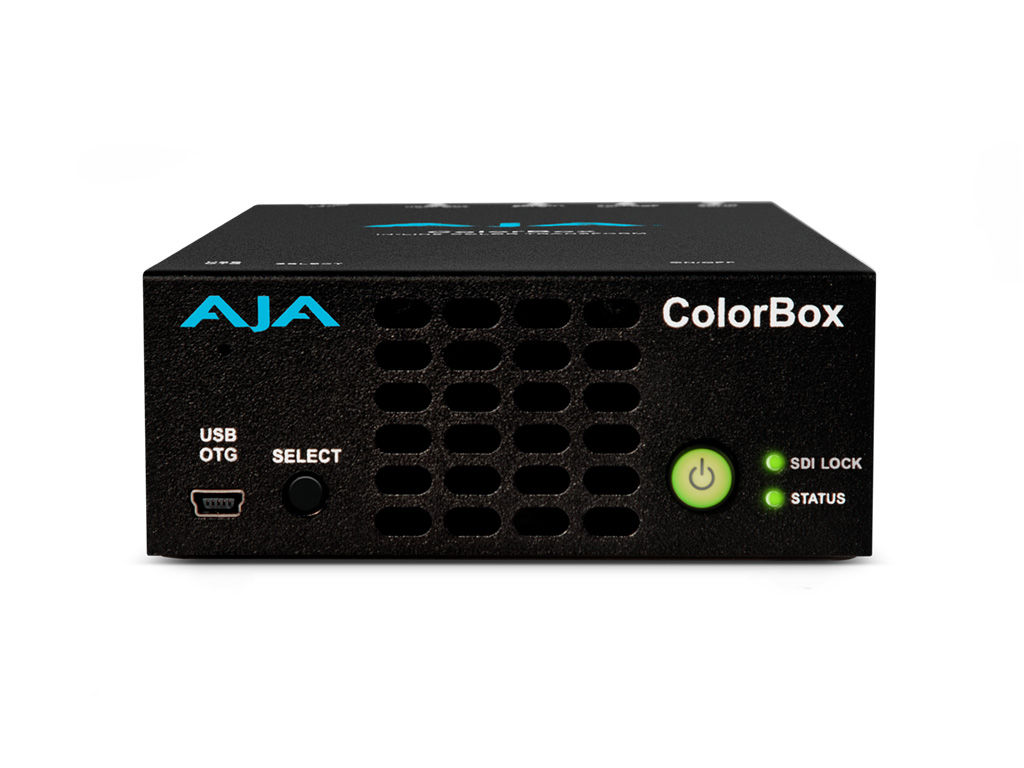

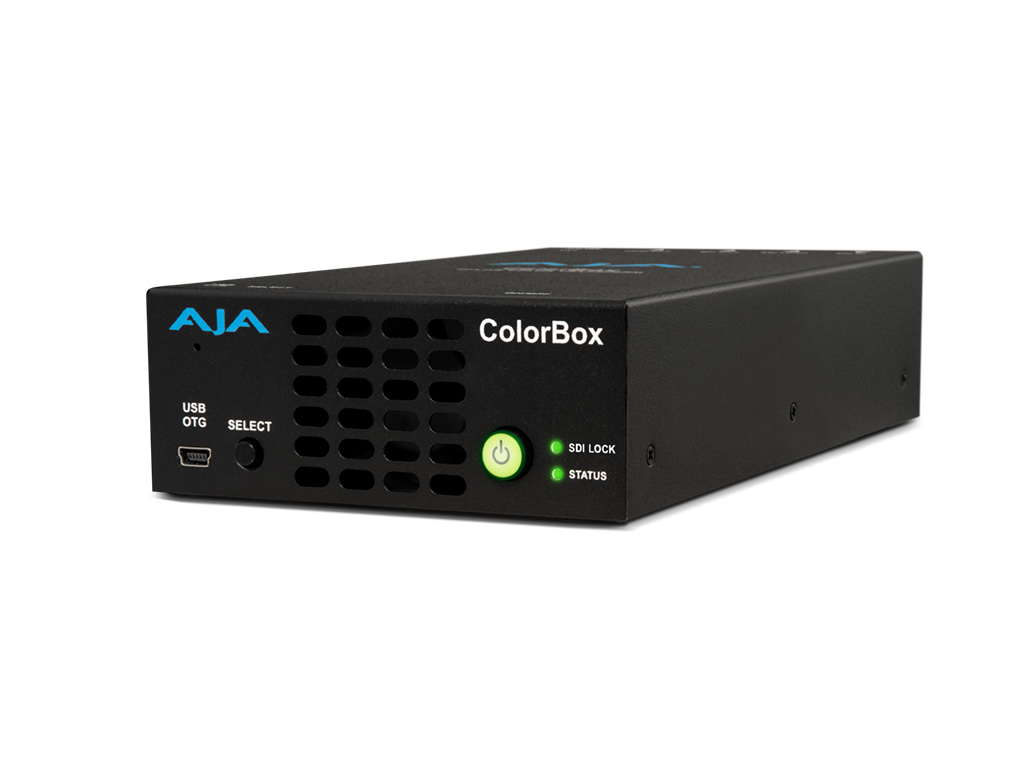

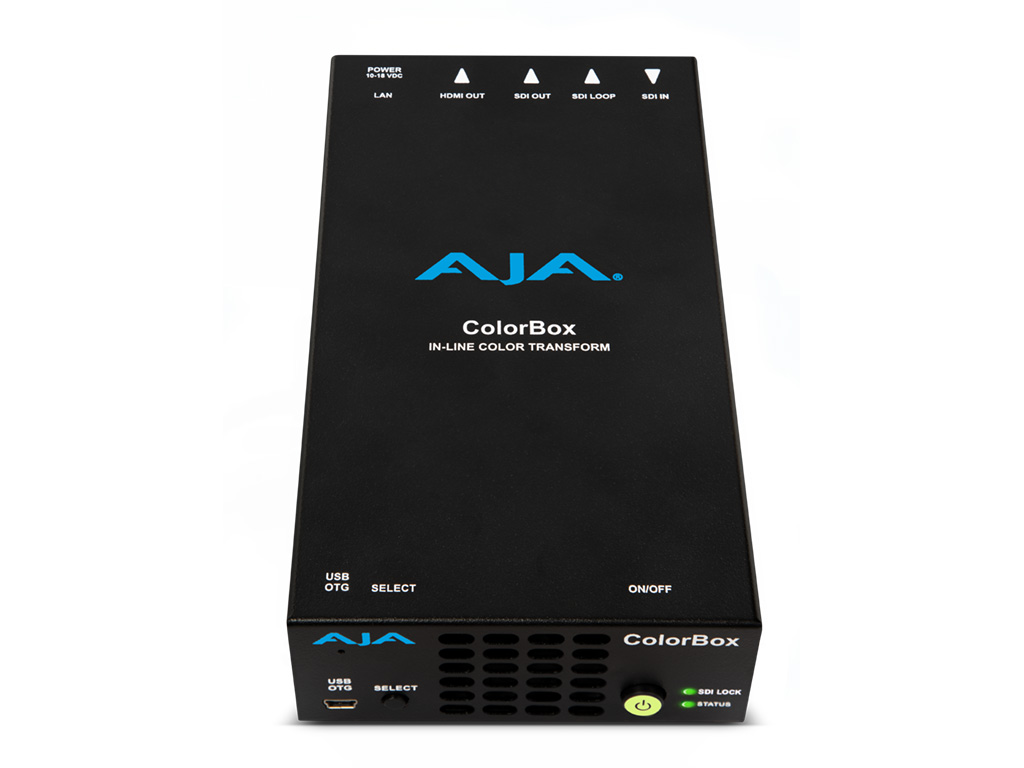

ColorBox from AJA is a high performance color management device specifically designed to meet the color conversion and color correction needs of broadcast, live events, and on-set applications. Supporting HDR, SDR, and Wide Color Gamut (WCG) signals, it utilizes 12G-SDI for single wire 4K/UltraHD up to 4:2:2 10-bit 60p or 4:4:4 12-bit 30p, with a unique color processing pipeline, and down-conversion. The ColorBox’s ultra-low latency, less than ½ of a video line, makes it ideal for color managed workflows for live productions.
HDR/WCG Real Time Processor
HDR Conversions
- HDR to HDR
- HDR to SDR
- SDR to HDR
Colorimetry
Video Formats
- (4K) 4096x2160p
- (UltraHD) 3840x2160p
- (2K) 2048x1080p
- (HD) 1920x1080p
- (HD) 1920x1080i
- (HD) 1280x720p
Color Processing Pipeline
- Processes in 12-bit RGB
- 6x pipelines; AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs, ACES
- 7x processing nodes plus Overlay in AJA Color; 4x 1D LUTs, 2x 3x3 Matrices, 1x 3D LUT
AJA Color Pipeline (ACP)
7x nodes in order of processing:
- 1D LUT, 3x3 Matrix, 1D LUT, 3D LUT, 1D LUT, 3x3 Matrix, 1D LUT, Overlay
3D LUT configurable as LUT or Dynamic
- Supports custom 33-point .CUBE, .SPI3D, and .3DL format 3D LUTs*, .CLF and .CTF
1D LUTs configurable as LUT, Dynamic, or Color Corrector
- Supports custom 10 and 12-bit .CUBE and .SPI1D format 1D LUTs
3x3 Matrices configurable as Matrix, Dynamic, or Proc Amp
- Supports custom .SPIMTX format matrices
- Tetrahedral 3D LUT interpolation
- Configurable Color Space, Range, and Transfer Characteristic
- ARRI Alexa 35’s Wireless Video Optimized LogC4 (WVO) Decoder
- Nonvolatile storage of 16x 3D LUTs, 16x 1D LUTs, and 16x 3x3 Matrices
- Overlay
*Various 3D LUT sizes are supported but will be converted to 33-point for processing

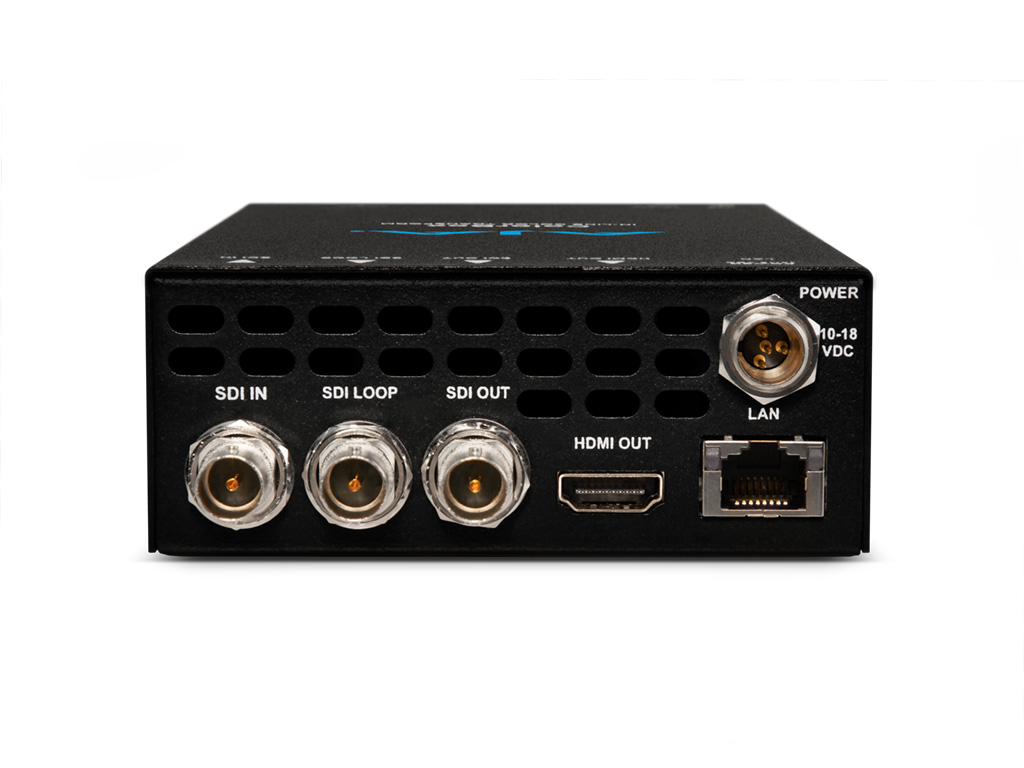

Video In- & Outputs SDI
Note: Raster and Frame Rate Dependent, please see ColorBox Video Formats in Documents and Manual
Video Output HDMI
- 1x HDMI Type A connector*, HDMI v2.0b
- HDR infoframe generation with pass-through for Colorimetry and Transfer Characteristic
- YCbCr 4:2:2
- RGB 4:4:4, SMPTE or Full level
- 8, 10, or 12-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
- 4K/UltraHD/2K/HD
- 4K/2K Crop to UltraHD or HD
*If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio)
Note: Raster and Frame Rate Dependent, please see ColorBox Video Formats in Documents and Manual
Down-Conversion
